304 Stainless Steel Pipe
Classification :
Keywords :
Stainless Steel Pipe
PRODUCT DETAILS

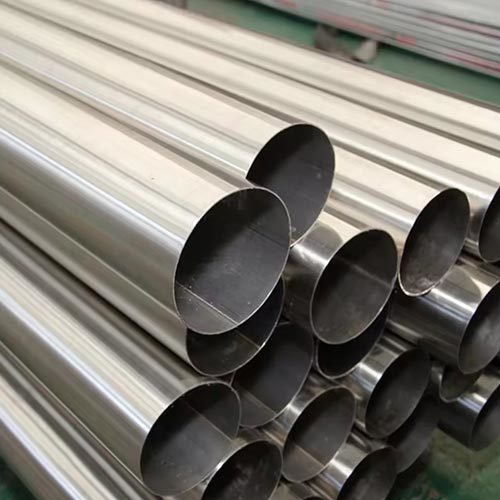

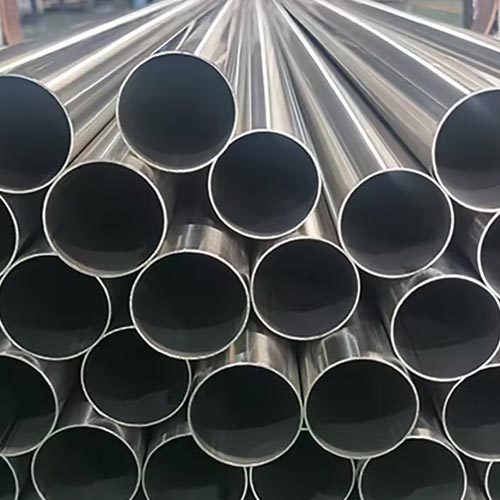

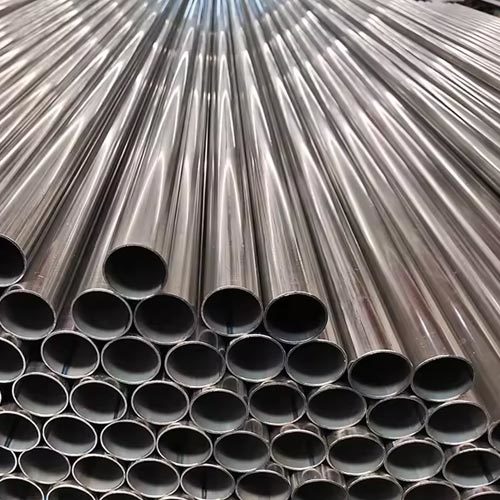

304 Stainless Steel Pipe Description
304 stainless steel is a kind of universal stainless steel material, rust resistance than 200 series of stainless steel material is stronger. High temperature resistance is also better, can be as high as 1000-1200 degrees. 304 stainless steel has excellent corrosion resistance and good intergranular corrosion resistance. For oxidizing acids, it is concluded in the experiment that 304 stainless steel has strong corrosion resistance in nitric acid with a concentration of less than or equal to 65% of the boiling temperature. It also has good corrosion resistance to alkali solution and most organic and inorganic acids.
Product Parameters
Product Name | 304 Stainless Steel Pipe | |
Type | Steel Pipe | |
Outer diameter | Round Tube | 4mm-200mm |
Square Tube | 10*10mm-100*100mm | |
Rectangular Tube | 10*20mm-50*100mm | |
Wall Thickness | 0.6mm-6.0mm | |
Length | 1-6 meters, Length can be customized | |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc. | |
Scope of Application | Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc. | |
Certificate | ISO, SGS, BV, etc. | |
Production Technology | Hot Rolling, Cold Rolling | |
Edge Processing | Edging, Trimming | |
Chemical Composition
C | Si | Mn | Cr | Ni | S | P |
≤ 0.08 | ≤1.0 | ≤ 2.0 | 18.0～20.0 | 8.0～10.5 | ≤ 0.03 | ≤ 0.035 |
Mechanical Properties
Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
≥ 520 | ≥ 205 | ≥ 40 | ≤ 187HB ;≤ 90HRB;≤ 200HV |
Physical Performance
Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
8.03 | 193 | 16.9 | 16.2 | 72 |
|
No |
China | Japan | USA | South Korea | Germany | India | Australia | Taiwan, China | |
|
|
GB |
JIS |
ASTM |
UNS |
KS |
DIN |
BIS |
AS |
CNS |
| Austenitic stainless steel | |||||||||
|
1 |
12Cr17Mn6Ni5N |
SUS201 |
201 |
S20100 |
STS201 |
1.4372 |
10Cr17Mn6Ni4N20 |
201-2 |
201 |
|
2 |
12Cr18Mn9Ni5N |
SUS202 |
202 |
S20200 |
STS202 |
1.4373 |
- |
- |
202 |
|
3 |
12Cr17Ni7 |
SUS301 |
301 |
S20200 |
STS301 |
1.4319 |
10Cr17Ni7 |
301 |
301 |
|
4 |
06Cr19Ni10 |
SUS304 |
304 |
S30400 |
STS304 |
1.4301 |
07Cr18Ni9 |
304 |
304 |
|
5 |
022Cr19Ni10 |
SUS304L |
304L |
S30403 |
STS304L |
1.4306 |
02Cr18Ni11 |
304L |
304L |
|
6 |
06Cr19Ni10N |
SUS304N1 |
304N |
S30451 |
STS304N1 |
1.4315 |
- |
304N1 |
304N1 |
|
7 |
06Cr19Ni9NbN |
SUS304N2 |
XM21 |
S30452 |
STS304N2 |
- |
- |
304N2 |
304N2 |
|
8 |
022Cr19Ni10N |
SUS304LN |
304LN |
S30453 |
STS304LN |
- |
- |
304LN |
304LN |
|
9 |
10Cr18Ni12 |
SUS305 |
305 |
S30500 |
STS305 |
1.4303 |
- |
305 |
305 |
|
10 |
06Cr23Ni13 |
SUS309S |
309S |
S30908 |
STS309S |
1.4833 |
- |
309S |
309S |
|
11 |
06Cr25Ni20 |
SUS310S |
310S |
S31008 |
STS310S |
1.4845 |
- |
310S |
310S |
|
12 |
06Cr17Ni12Mo2 |
SUS316 |
316 |
S31600 |
STS316 |
1.4401 |
04Cr17Ni12Mo2 |
316 |
316 |
|
13 |
06Cr17Ni12Mo2Ti |
SUS316Ti |
316Ti |
S31635 |
- |
1.4571 |
04Cr17Ni12MoTi20 |
316Ti |
316Ti |
|
14 |
022Cr17Ni12Mo2 |
SUS316L |
316L |
S31603 |
STS316L |
1.4404 |
~02Cr17Ni12Mo2 |
316L |
316L |
|
15 |
06Cr17Ni12Mo2N |
SUS316N |
316N |
S31651 |
STS316N |
- |
- |
316N |
316N |
|
16 |
022Cr17Ni13Mo2N |
SUS316LN |
316LN |
S31653 |
STS316LN |
1.4429 |
- |
316LN |
316LN |
|
17 |
06Cr18Ni12Mo2Cu2 |
SUS316J1 |
- |
- |
STS316J1 |
- |
- |
316J1 |
316J1 |
|
18 |
022Cr18Ni14Mo2Cu2 |
SUS316J1L |
- |
- |
STS316J1L |
- |
- |
- |
316J1L |
|
19 |
06Cr19Ni13Mo3 |
SUS317 |
317 |
S31700 |
STS317 |
- |
- |
317 |
317 |
|
20 |
022Cr19Ni13Mo3 |
SUS317L |
317L |
S31703 |
STS317L |
1.4438 |
- |
317L |
317L |
|
21 |
06Cr18Ni11Ti S |
SUS321 |
321 |
S32100 |
STS321 |
1.4541 |
04Cr18Ni10Ti20 |
321 |
321 |
|
22 |
06Cr18Ni11Nb |
SUS347 |
347 |
S34700 |
STS347 |
1.4550 |
04Cr18Ni10Nb40 |
347 |
347 |
| Duplex stainless steel | |||||||||
|
1 |
- |
SUS329J1 |
329 |
S32900 |
STS329J1 |
1.4477 |
- |
329J1 |
- |
|
2 |
022Cr23Ni5Mo3N |
- |
S32205 |
F60 |
- |
1.4462 |
- |
2205 |
2205 |
|
3 |
022Cr25Ni7Mo4N |
- |
S32750 |
F53 |
- |
1.4410 |
- |
2507 |
2507 |
| Ferritic stainless steel | |||||||||
|
1 |
06Crl3Al |
SUS405 |
405 |
S40500 |
STS405 |
1.4002 |
04Cr13 |
405 |
405 |
|
2 |
022Cr11Ti |
SUH409 |
409 |
S40900 |
STS409 |
1.4512 |
- |
409L |
409L |
|
3 |
022Cr12 |
SUS410L |
- |
- |
STS410L |
- |
- |
410L |
410L |
|
4 |
10Cr17 |
SUS430 |
430 |
S43000 |
STS430 |
1.4016 |
05Cr17 |
430 |
430 |
|
5 |
10Cr17Mo |
SUS434 |
434 |
S43400 |
STS434 |
1.4113 |
- |
434 |
434 |
|
6 |
022Cr18NbTi |
- |
- |
S43940 |
- |
1.4509 |
- |
439 |
439 |
|
7 |
019Cr19Mo2NbTi |
SUS444 |
444 |
S44400 |
STS444 |
1.4521 |
- |
444 |
444 |
| Martensitic stainless steel | |||||||||
|
1 |
12Cr12 |
SUS403 |
403 |
S40300 |
STS403 |
- |
- |
403 |
403 |
|
2 |
12Cr13 |
SUS410 |
410 |
S41000 |
STS410 |
1.4006 |
12Cr13 |
410 |
410 |
|
3 |
20Cr13 |
SUS420J1 |
410 |
S42000 |
STS420J1 |
1.4021 |
20Cr13 |
420 |
420J1 |
|
4 |
30Cr13 |
SUS420J2 |
- |
- |
STS420J2 |
1.4028 |
30 Cr13 |
420J2 |
420J2 |
|
5 |
68Cr17 |
SUS440A |
440A |
S44002 |
STS440A |
- |
- |
440A |
440A |
Packing and delivery
We can providewooden pallet packaging,Wooden packing,Steel strapping packaging,Plastic packaging and other packaging methods.We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
