A36/Q235/S235JR Carbon Steel Plate
Classification :
Keywords :
Carbon Steel Plate
PRODUCT DETAILS

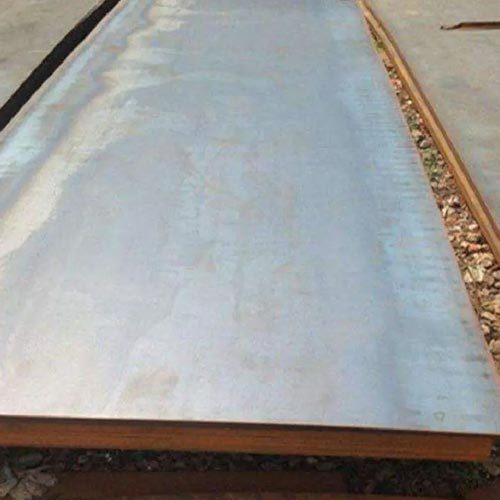

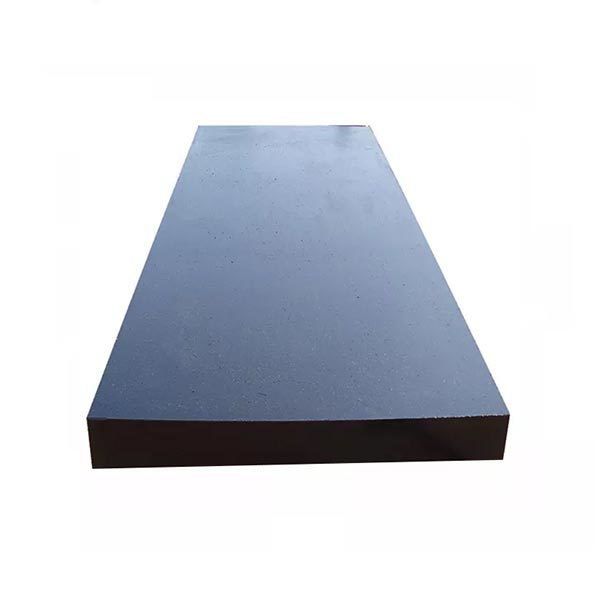

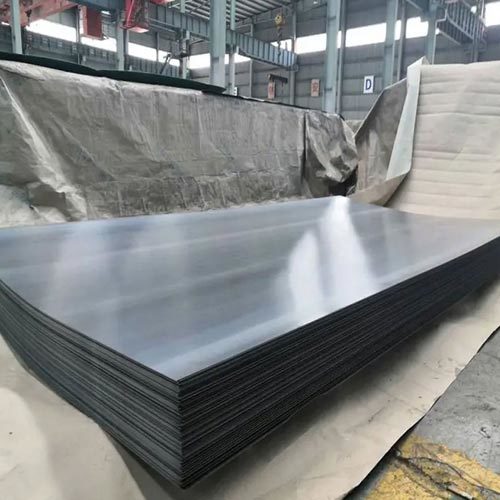

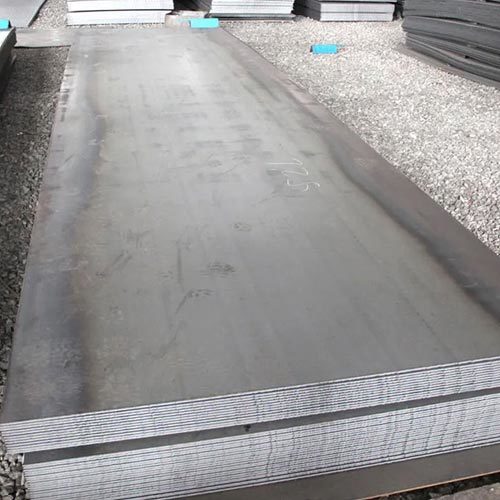

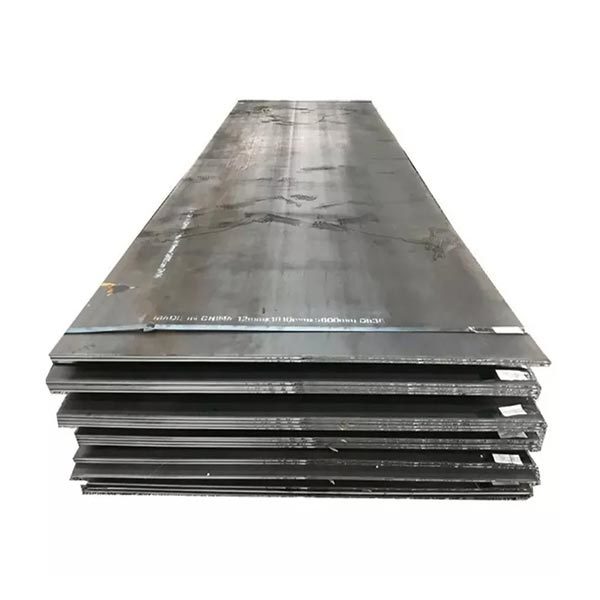

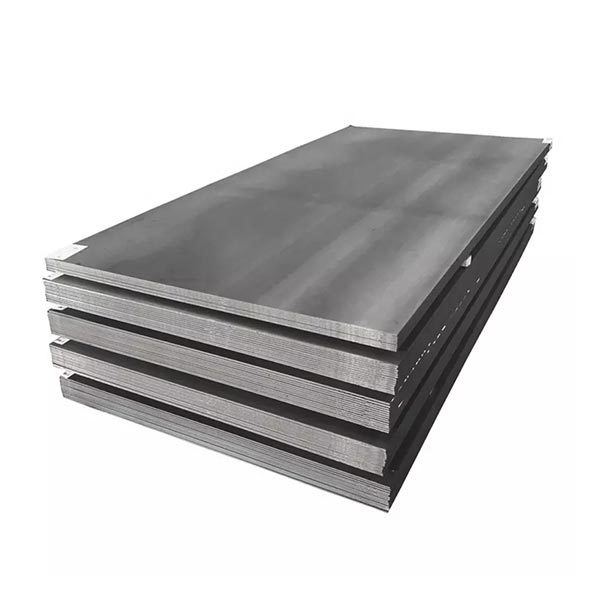

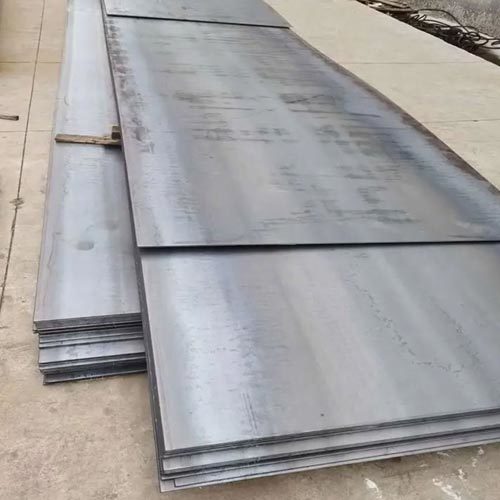

A36/Q235/S235JR Carbon Steel Plate Description
A36 is a low-carbon steel containing trace amounts of manganese, phosphorus, sulfur, silicon and other elements such as copper. A36 has good weldability and high yield strength, and is the structural steel plate specified by the engineer. ASTM A36 steel plate is often manufactured into a variety of structural steel parts. This grade is used for welded, bolted or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its low yield point, A36 carbon plate can be used to design lighter weight structures and equipment, and provide good weldability. Construction, energy, heavy equipment, transportation, infrastructure and mining are the industries where A36 panels are commonly used.
Product Parameters
Product Name | A36/Q235/S235JR Carbon Steel Plate |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 100mm-3000mm |
Length | 1m-12m, or Customized Size |
Thickness | 0.1mm-400mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
C | Cu | Fe | Mn | P | Si | S |
0.25~0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
A36 | Limit Tensile Strength | Tensile Strength, Yield Strength | Elongation at Break (Unit: 200mm) | Elongation at Break (Unit: 50mm) | Modulus of Elasticity | Bulk Modulus (Typical for Steel) | Poisson's Ratio | Shear Modulus |
Metric | 400~550MPa | 250MPa | 20.0% | 23.0% | 200GPa | 140GPa | 0.260 | 79.3GPa |
Imperial | 58000~79800psi | 36300psi | 20.0% | 23.0% | 29000ksi | 20300ksi | 0.260 | 11500ksi |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.85 g/cm3 | 0.284 lb/in3 |
Scope of Application
Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.
Equivalent Material
National Standard GB | European Standard EN | American Standard ASTM | German Standard DIN, WNr | Japanese Standard JIS | French Standard AFNOR | British Standard BS | Canada HG |
Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A/40B | 230G |
Italy UNI | India IS | Switzerland SS | Australia ONORM | Norway NS | Spain UNE | International Standards ISO | Portugal NP |
Fe360B | IS2062 | 1311/1312 | RSt360B | NS12123 | AE235B-FN | E235B/Fe360B | FE360-B |
| China | USA | Germany | Japan | France | U.K. | internationality |
|
GB3077 |
AlSI |
DIN |
JIS |
NE |
BS |
ISO |
|
20Mn2 |
1320 1221 |
20Mn5 |
SMn21 |
20M5 |
150M19 |
- |
|
30Mn2 |
1330 |
30Mn5 |
SMn24 |
32M5 |
150M28 |
- |
|
35Mn2 |
1335 |
36Mn5 |
SMnl |
35M5 |
150M36 |
- |
|
40Mn2 |
1340 1341 |
- |
SMn2 |
40M5 |
- |
- |
|
45Mn2 |
1345 |
46Mn7 |
SMn3 |
45M5 |
- |
- |
|
50Mn2 |
1052 |
50Mn7 |
- |
55M5 |
- |
- |
|
20MnV |
- |
20MnV6 |
- |
|
- |
- |
|
30Mn2MoW |
- |
-- |
- |
|
- |
- |
|
27SiMn |
- |
27MnSi5 |
- |
|
- |
- |
|
35SiMn |
- |
37MnSi5 |
- |
38MS5 |
- |
- |
|
42SiMn |
- |
38MnSi4 46MnSi4 |
- |
38MS5 |
- |
- |
|
20SiMn2MoV |
- |
- |
- |
- |
- |
- |
|
25SiMn2MoV |
- |
- |
- |
- |
- |
- |
|
37SiMn2MoV |
- |
- |
- |
- |
- |
- |
|
40B |
14B35 |
35B2 |
- |
- |
- |
- |
|
45B |
50B46H |
45B2 |
- |
- |
- |
- |
|
50B |
14B50 |
- |
- |
- |
- |
- |
|
4OM∏B |
15B41 |
- |
- |
- |
- |
- |
|
45MnB |
15B48 50B44 |
- |
- |
- |
- |
- |
|
20Mn2B |
- |
- |
- |
- |
- |
- |
|
20MnMoB |
80B20 |
- |
- |
- |
- |
- |
|
15MnVB |
- |
- |
- |
- |
- |
- |
|
- |
- |
- |
- |
- |
- |
- |
|
- |
- |
- |
- |
- |
- |
- |
|
20MnVB |
- |
- |
- |
- |
- |
- |
|
40MnVB |
- |
- |
- |
- |
- |
- |
|
20MnTiB |
- |
- |
- |
- |
- |
- |
|
25MnTiBRE |
- |
- |
- |
- |
- |
- |
|
2OSiMnVB |
- |
- |
- |
- |
- |
- |
|
15Cr |
5015 5115 |
15Cr3 |
SCr21 |
12C3 |
523A14 523M15 |
- |
|
15CrA |
- |
- |
- |
- |
- |
- |
|
20Cr |
5120 |
20Cr4 |
SCr22 |
18C3 18C4 |
527A19 527M20 |
683/11 20Cr4 20CrS4 |
|
30Cr |
5130 |
28Cr4 |
SCr2 |
28C4 32C4 |
530A30 530A32 |
- |
|
35Cr |
5135 |
34Cr4 37Cr4 |
SCr3 |
38C4 |
530A36 |
683/8 3、 3a、 3b |
|
40Cr |
5140 |
38Cr4 41Cr4 |
SCr4 |
42C4 |
530A40 530M40 |
683/1 4、 4a^ 4b |
|
45Cr |
5145 |
42Cr4 |
SCR5 |
45C4 |
- |
- |
|
50Cr |
5150 5152 |
- |
- |
50C4 |
En48 |
- |
|
38CrSi |
- |
- |
- |
- |
- |
- |
|
12CrMo |
4119 |
13CrMo44 |
- |
12CD4 15CD2 |
- |
- |
|
15CrMo |
ASTM A-387Gr. B |
15CrMo5 16CrMo44 |
SCM21 |
15CD4. 05 |
BS1653 |
- |
|
20CrMo |
4118 |
20CrMo5 22CrMo4 |
SCM22 |
18CD4 20CD4 |
CDS 12 CDSllO |
- |
|
30CrMo |
4130 |
25CrMo4 |
SCM2 |
30CD4 |
CDS 13 |
- |
|
30CrMoA |
- |
32CrMol2 3ICRMo12 |
- |
- |
- |
- |
|
35CrMo |
4135 4137 |
34CrMo4 35CrMo4 |
SCM3 |
35CD4 |
78A37 |
683/1 C35ea C35eb |
|
42CrMo |
4140 4142 |
41CrMo4 42CrMo4 |
SCM4 |
40CD4 42CD4 |
708M40 708A42 709M40 |
683/1 3 |
|
12CrMoV |
- |
- |
- |
- |
- |
- |
|
35CrMoV |
- |
35CrMoV5 |
- |
- |
- |
- |
|
12CrlMoV |
- |
13CrMoV4.2 |
- |
- |
- |
- |
|
25Cr2MoVA |
- |
24CrMoV5.5 |
- |
- |
- |
- |
|
25Cr2MolVA |
- |
- |
- |
- |
- |
- |
|
20CR3MoWVA |
- |
21CrVMoW12 |
- |
- |
- |
- |
|
38CrMoΛl |
6370 (ΛMS) |
34CrAlMo5 41CrAlMo7 |
SACM645 |
40CAD6.12 |
905M39 |
683/10 41CrAlMo74 |
|
20CrV |
6120 |
22CrV4 |
- |
22CrV4 |
- |
- |
|
40CrV |
6140 |
42CrV |
- |
42CrV4 |
- |
- |
|
50CrVA |
6150 |
50CrV4 |
SUPlO |
50CV4 |
735A50 |
- |
|
15CrMn |
- |
16MnCr5 |
- |
16MC5 |
- |
- |
|
20CrMn |
5120 |
20MnCr5 |
SMC21 |
20MC5 |
- |
- |
|
40CrMn |
5140 |
- |
SMC3 |
- |
- |
- |
|
20CrMnSi |
- |
- |
|
- |
- |
- |
|
25CrMnSi |
- |
- |
SMKl |
- |
- |
- |
|
30CrMnSi |
- |
- |
- |
- |
- |
- |
|
30CrMnSiA |
- |
- |
- |
- |
- |
- |
|
35CrMnSiA |
- |
- |
SMK2 |
- |
- |
- |
|
20CrMnMo |
4119 |
20CrMo5 |
SCM23 |
- |
- |
- |
|
40CrMnMo |
4140 |
- |
- |
- |
- |
- |
|
20CrMnTi |
- |
- |
SMK22 |
- |
- |
- |
|
30CrMnTi |
- |
30MnCrTi4 |
- |
- |
- |
- |
|
20CrNi |
3120 |
20NiCr6 |
- |
20NC6 |
637A16 637M17 |
- |
|
40CrNi |
3140 |
46NiCr6 |
SNCl |
35NC6 |
640A35 640M40 |
- |
|
45CrNi |
3145 |
45NiCr6 |
- |
- |
- |
- |
|
50CrNi |
3150 |
- |
- |
- |
- |
- |
|
12CrNi2 |
3115 |
14NiCrlO |
SNC21 |
IONCll 14NC11 |
- |
- |
|
12CrNi3 |
3310 |
13NiCrl2 |
SNC22 |
10NC12 14NC12 |
655A12 655M13 |
- |
|
20CrNi3 |
- |
22NiCrl4 |
- |
20NC11 |
- |
- |
|
30CrNi3 |
- |
28NiCrlO 31NiCrl4 |
SNC2 |
30NC11 30NC12 |
- |
- |
|
37CrNi3 |
- |
35NiCrl8 |
SNC3 |
35NC15 |
- |
- |
|
12Cr2Ni4 |
E3310 |
14NiCrl8 |
- |
12NC15 |
- |
- |
|
20Cr2Ni4 |
E3316 |
22NiCrl4 |
- |
20NC14 |
659A15 659M15 |
- |
|
20CrNiMo |
8620 8720 |
20NiCrMo2 21NiCrMo2 |
- |
20NCD2 |
805A20 805M20 |
- |
|
40CrNiMoA |
4340 9840 |
36NiCrMo4 40NiCrMo6 |
SNCM8 |
35NCD5 40NCD3 |
817M40 816M40 |
- |
|
45CrNiMoVA |
4437 |
- |
SNCM9 |
- |
- |
- |
|
18Cr2Ni4WA |
|
|
|
|
|
|
|
25Cr2Ni4WA |
|
|
|
|
|
|

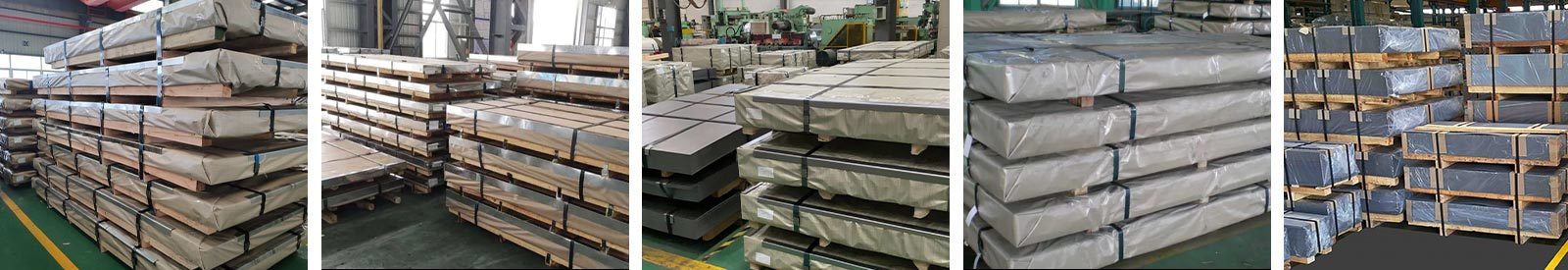

Packing and delivery
We can providewooden pallet packaging,Wooden packing,Steel strapping packaging,Plastic packaging and other packaging methods.We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
FACTORY
Qingdao Ansteel processing capacity is several tens of million tons, and it is mainly engaged in the research and development, production and sales of carbon steel sheet ,carbon steel coil , carbon steel pipe , stainless steel coil , stainless steel sheet , stainless steel pipe , galvanized steel coil ,galvanized steel sheet , galvanized pipe ,PPGI&PPGL, steel corrugated Roofing sheet, steel profile(angle bar,round bar, channel bar , wire rod ,steel wire , rebar , steel piles,steel rail etc)and other alloy steel product etc.
application
We are a steel enterprise with the ability to export complete sets of technologies. We are a leading domestic manufacturer of series of products such as steel for automobiles, steel for railroads, steel for shipbuilding and offshore engineering, steel for bridges, steel for nuclear power generation, steel for household appliances, steel for containers, electrical steel, steel for petroleum and petrochemicals, steel for high-end products, and special steel.
